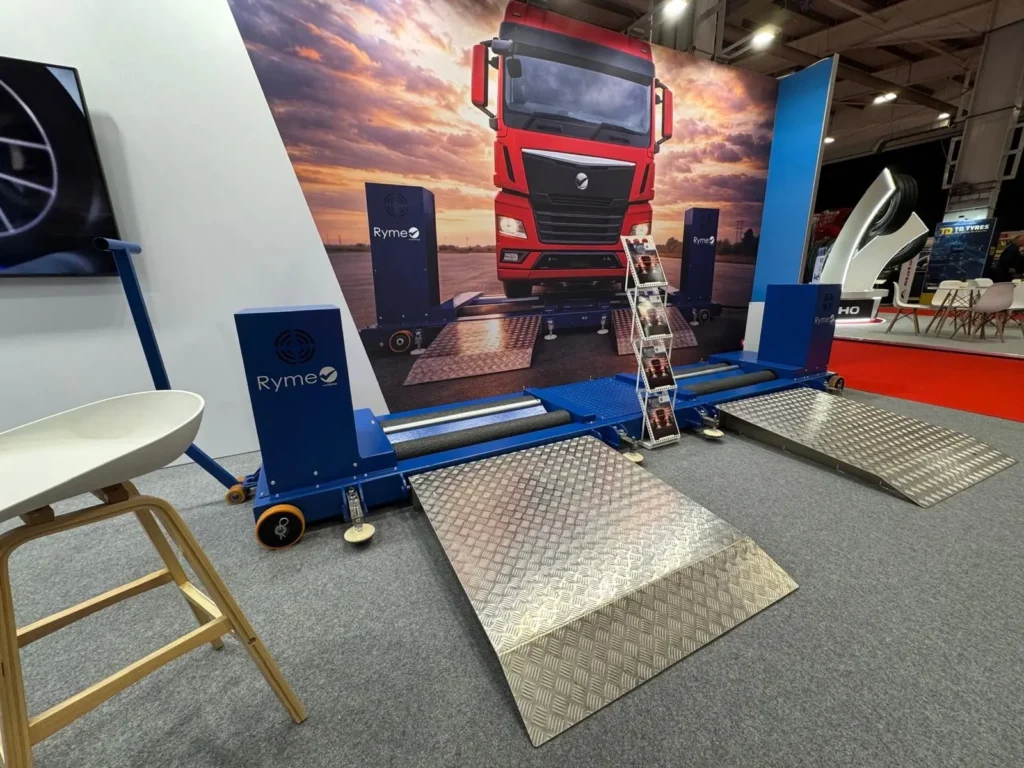

The Ryme Worldwide FRU 9 is a portable truck roller brake tester designed for accurate, reliable heavy vehicle brake testing in Australian workshops and mobile operations. As a fully portable system, it enables mobile brake testing without the need for permanent in-ground installation, making it ideal for fleets, regional workshops, and on-site inspection providers.
Supplied and supported by EquipSpecs across Australia, the FRU 9 can be transported using a light vehicle and deployed quickly, delivering accurate, repeatable brake performance results for heavy vehicles with axle loads up to 18 tonnes.
Designed to support compliance testing, remote servicing, and flexible workshop environments, it provides a practical alternative to in-ground brake testing systems while maintaining professional testing standards.
The FRU 9 forms part of EquipSpecs’ complete range of truck roller brake testers, supporting heavy vehicle workshops, fleet depots, and mobile inspection providers across Australia.
What is the FRU 9 Portable Truck Roller Brake Tester?
The Ryme Worldwide FRU 9 is a professional heavy-vehicle roller brake tester engineered to provide accurate, repeatable analysis of braking system performance. Using precision strain gauge measurement technology and high-traction rollers, it delivers reliable brake force data suitable for compliance inspections, workshop diagnostics, and fleet maintenance.
The FRU 9 enables workshops and inspection providers to accurately measure:
• Brake force and performance
• Rolling resistance
• Ovality and weight measurement
• Overall brake performance
EquipSpecs provides full commissioning, calibration, and ongoing support throughout Australia.
Key Features of the FRU 9 Portable Truck Roller Brake Tester
Performance & Capacity
• Supports up to 18 tonnes per axle
• High-traction rollers for accurate and repeatable results
• Precision electronic measurement with SMRW software integration
Portability & Deployment
• Fully portable brake tester requiring no permanent installation
• Transportable by light vehicle for mobile inspection applications
• Tear-drop aluminium access ramps for safe vehicle loading
• Fast setup without specialised tools
Workshop Integration & Usability
• Ideal for workshops without fixed inspection pits
• Suitable for fleet depots, mobile inspection units, and temporary testing sites
• Electronic control console with professional brake analysis software
• Compatible with heavy vehicle and 4×4 testing requirements
Build Quality & Reliability
• High-durability rollers for commercial vehicle applications
• Designed for demanding workshop and field environments
• Supplied and supported throughout Australia by EquipSpecs
Technical Data and Dimensions
| Specification | Detail |
|---|---|
| Maximum load per axle | 18 tonnes |
| Roller dimensions | 1,135 × 150 mm |
| Distance between rollers | 430 mm |
| Test speed | 2 km/h |
| Engine power | 9 kW with brake |
| Measurement range | 0 – 40 kN |
| Coefficient of friction | 0.8 dry / 0.6 wet |
| Power supply | 3 × 400 VAC, 50/60 Hz |
| Dimensions | 4,800 × 930 × 210 mm |
| Weight | approx. 1,350 kg |
Ideal Applications
The FRU 9 portable truck brake tester is ideal for:
• Mobile heavy vehicle inspection services
• Fleet maintenance facilities
• Transport operator workshops
• Temporary inspection stations
• Workshops without fixed brake tester installation
• Remote or regional heavy vehicle service providers
Its portable configuration makes it particularly suitable for Australian fleet operators and inspection providers requiring flexible, high-accuracy brake testing capability.
Further Information
FAQ Section – Ryme Worldwide FRU 9 Portable Truck Roller Brake Tester
The FRU 9 supports axle loads of up to 18 tonnes, suitable for most heavy vehicle and fleet applications.
No. The FRU 9 is fully portable and can be deployed without permanent installation.
Yes. Its portable design makes it ideal for mobile brake testing and fleet inspection applications.
Yes. EquipSpecs provides full commissioning, calibration, and nationwide support across Australia.
Upgrade Your Heavy Vehicle Brake Testing Capability
EquipSpecs supplies and supports the Ryme Worldwide FRU 9 portable truck roller brake tester across Australia.
Contact our team to discuss your requirements or request a quote.
